In the vast realm of microcontrollers, lies a powerful and versatile component known for its exceptional capabilities and reliable performance. This article will delve into the world of Atmega32a pu, and explore its distinctive features that make it an indispensable tool for electronics enthusiasts and professionals alike.
Referred to as the heart and brain of countless electronic devices, Atmega32a pu serves as the driving force behind the seamless execution of various tasks, from simple automation processes to complex computation operations. With its remarkable processing power and efficient design, this microcontroller empowers engineers to bring their innovative projects to life.
Unlocking a multitude of possibilities, the Atmega32a pu boasts an extensive array of features and functionalities. Equipped with an ample amount of memory and numerous input/output pins, this dynamic component provides ample space for storing data and enables seamless connectivity with a wide range of external devices. Its exceptional performance is further enhanced by its low power consumption and compatibility with different programming languages, making it an ideal choice for energy-efficient and customized applications.
Overview of Atmega32a pu Datasheet
In this section, we will provide a comprehensive overview of the documentation pertaining to the microcontroller chip known as Atmega32a pu. The datasheet contains valuable information and specifications that are crucial for understanding the functionality and capabilities of this microcontroller.
Introduction:
Atmega32a pu is a powerful microcontroller that offers a wide range of applications and features. It is designed to provide flexible and efficient solutions for embedded systems and electronic projects. The datasheet serves as a comprehensive guide for programmers, engineers, and developers who seek to utilize the full potential of this microcontroller.
Key Features:
The datasheet outlines the main features of Atmega32a pu, such as its performance, power consumption, memory, and various peripherals. It provides detailed specifications and configurations that allow developers to make informed decisions regarding their projects. Additionally, the datasheet highlights the versatility of this microcontroller by presenting its compatibility with different programming languages and tools.
Pin Configuration:
Understanding the pin configuration is essential for successful hardware integration and interfacing. The datasheet provides a comprehensive explanation of the pinout, pin functions, and electrical characteristics of Atmega32a pu. This section helps developers identify and connect peripheral devices with ease.
Memory Architecture:
Atmega32a pu features a rich memory architecture that includes both program memory and data memory. The datasheet illustrates the organization, addressing, and usage of these memory types. This information aids in efficient memory management and enables developers to optimize their code and storage requirements.
Peripheral Modules:
The Atmega32a pu includes various peripheral modules, such as timers, USART, SPI, ADC, and more. The datasheet presents a detailed explanation of each module’s features, configuration, and usage. It equips developers with the necessary knowledge to integrate and utilize these modules effectively in their projects.
Electrical Characteristics:
This section of the datasheet provides detailed electrical specifications, including voltage levels, current consumption, and operating conditions. Developers can ensure proper power supply and design circuits that meet the requirements of Atmega32a pu by referring to this information.
Conclusion:
The overview of the Atmega32a pu datasheet presented in this section provides a glimpse into the comprehensive nature of this documentation. By exploring the different sections of the datasheet, developers gain a holistic understanding of the microcontroller and can harness its full potential. The datasheet serves as an invaluable resource for creating innovative and efficient projects using the Atmega32a pu microcontroller.
Features and Specifications of Atmega32a pu
In this section, we will explore the notable features and specifications of the Atmega32a pu microcontroller. This microcontroller offers a wide range of capabilities that make it suitable for various applications in the field of embedded systems.
Powerful Processing
The Atmega32a pu is equipped with a high-performance 8-bit AVR RISC-based microcontroller core, providing fast and efficient processing. Its robust architecture ensures reliable operation and efficient execution of instructions, enabling speedy response times for real-time applications.
Abundant Memory
With its generous amount of memory, the Atmega32a pu can handle complex algorithms and store significant amounts of data. It features 32KB of Flash program memory for storing application code, as well as 2KB of SRAM for data storage. Additionally, it includes 1KB of internal EEPROM for non-volatile data storage, allowing for the retention of critical information even when power is lost.
The Atmega32a pu also incorporates several advanced peripherals, including multiple timers/counters, UART, SPI, and I2C interfaces, allowing for seamless integration with other devices and enabling versatile communication capabilities.
Furthermore, this microcontroller offers a wide operating voltage range, making it adaptable to various power supply configurations. With its low power consumption and a variety of sleep modes, the Atmega32a pu is designed to minimize energy use, extending battery life in portable applications and reducing overall power consumption in embedded systems.
In conclusion, the Atmega32a pu is a feature-rich microcontroller that combines powerful processing capabilities, abundant memory options, and a range of integrated peripherals. Its versatility and reliability make it an ideal choice for a wide range of applications, from consumer electronics to industrial automation.
Pin Configuration and Functionality of Atmega32a pu
In this section, we will explore the pin configuration and functionality of the Atmega32a pu microcontroller. Understanding the pin configuration is essential for successfully designing and implementing projects with this microcontroller.

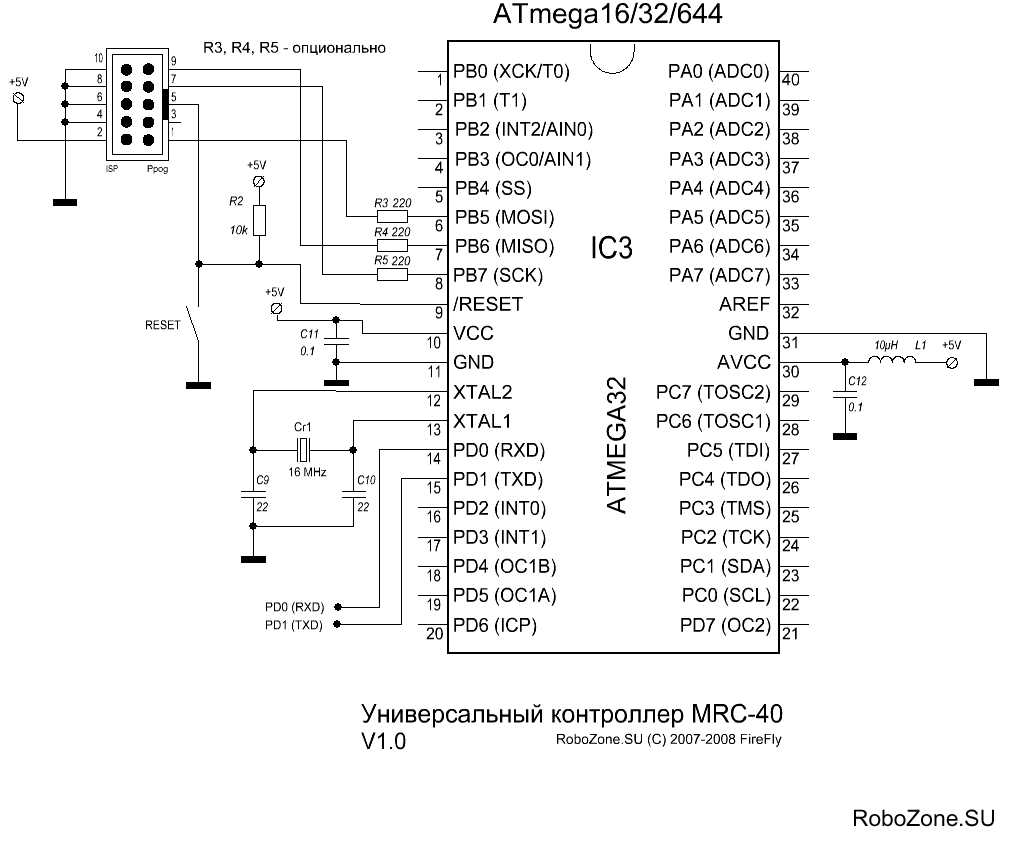

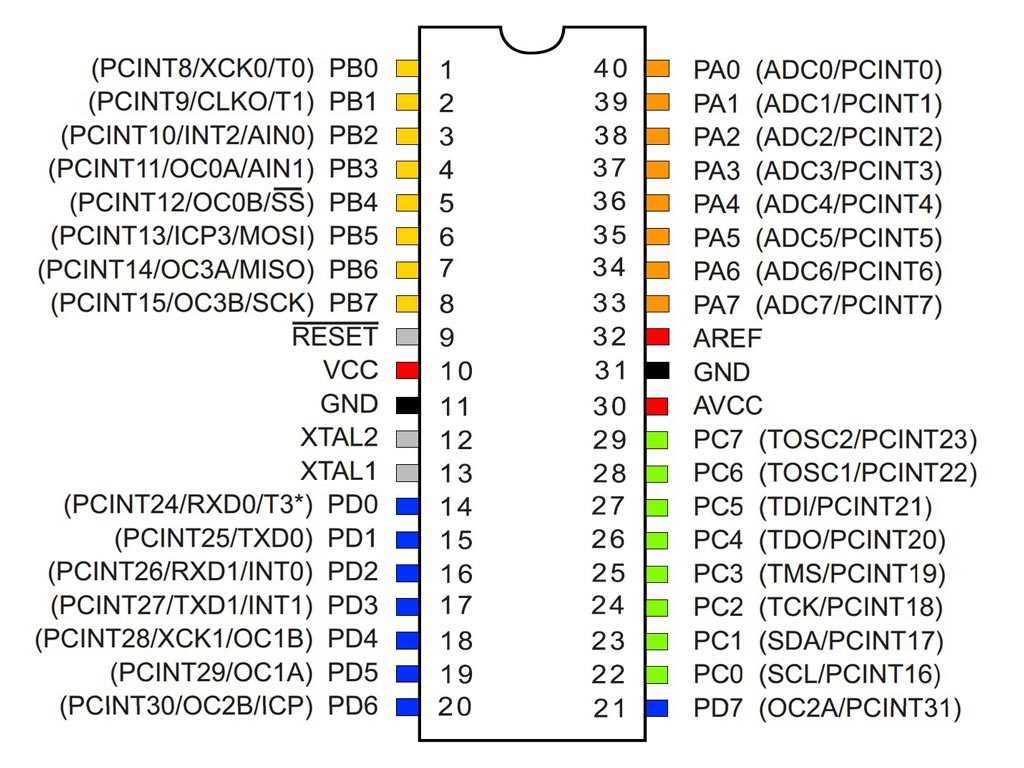

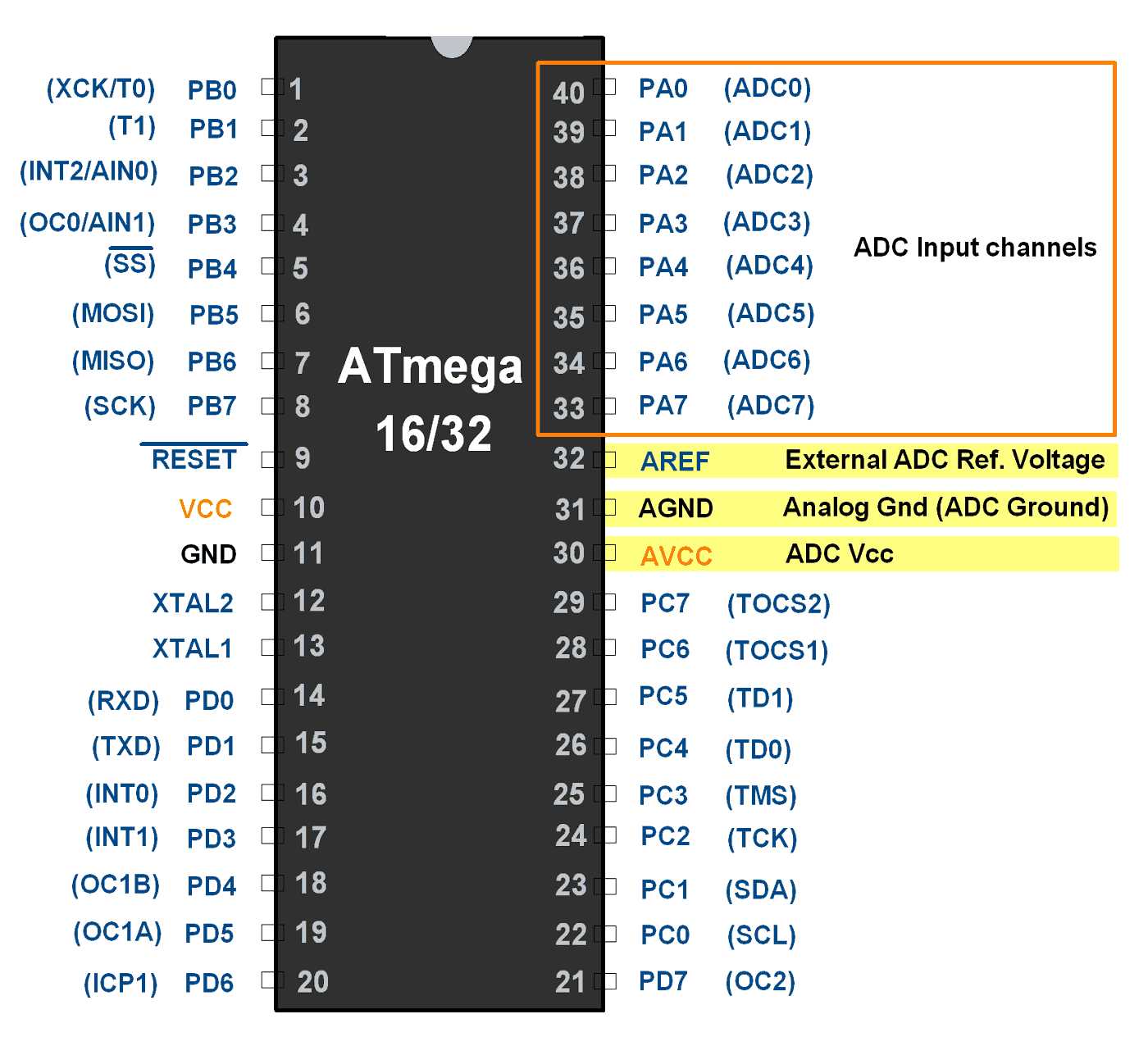

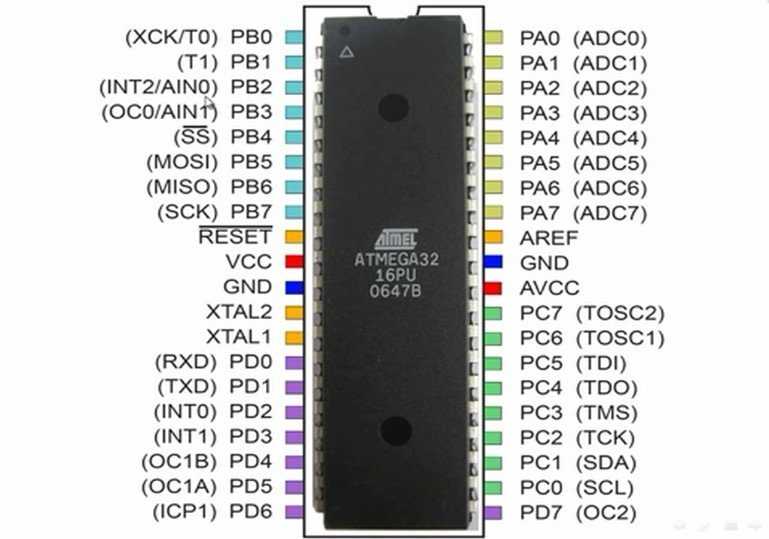

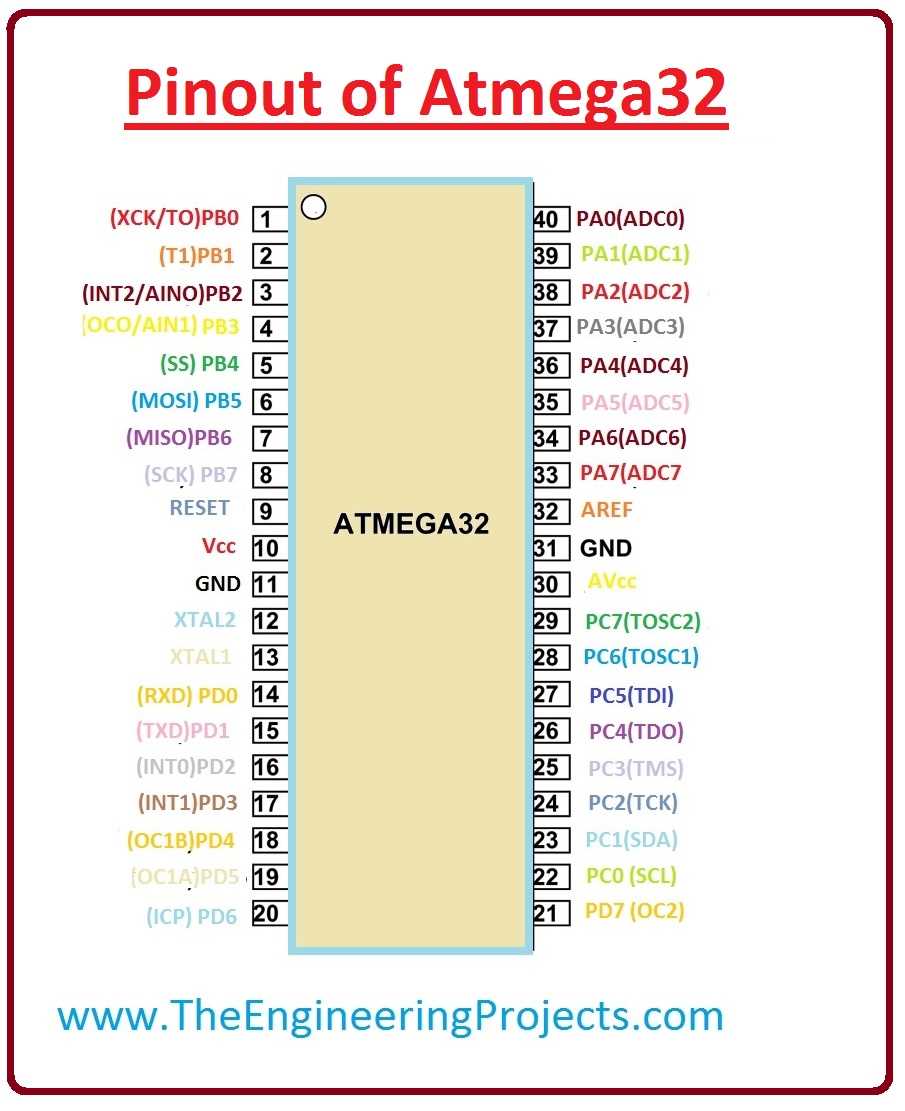

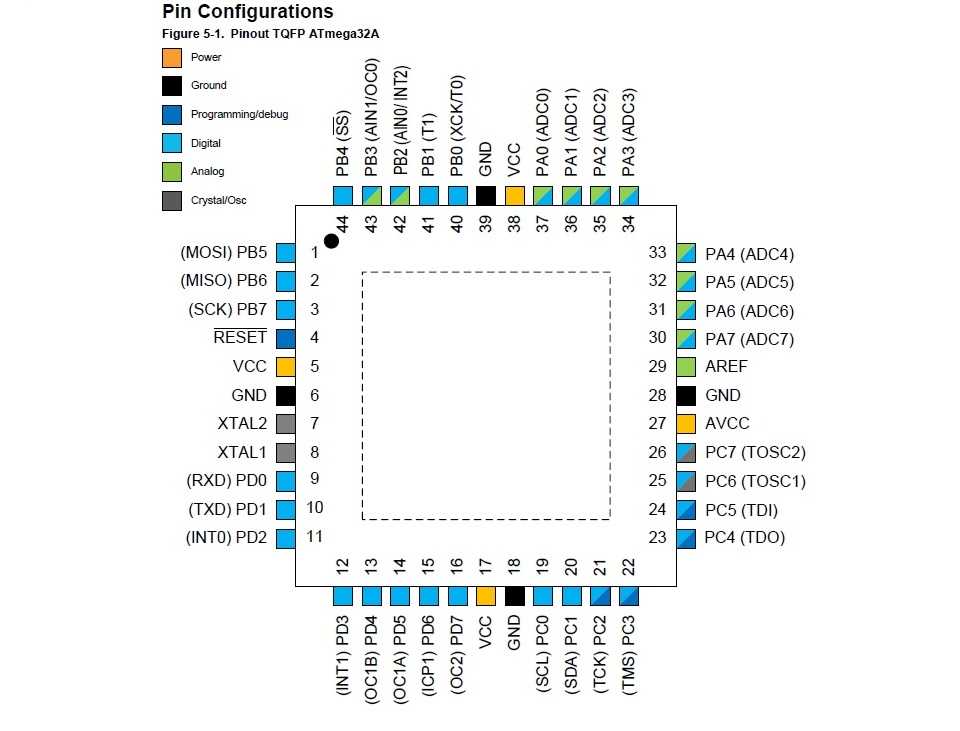

Pinout Diagram
The Atmega32a pu microcontroller has a total of 40 pins, which are arranged in a dual in-line package (DIP) format. The pins are labelled from 1 to 40, and each pin has a specific function and purpose.
Let’s take a closer look at the functionality of some of the key pins:
- VCC: This pin provides the power supply voltage to the microcontroller. It should be connected to the positive terminal of the power supply.
- GND: This pin is the ground reference for the microcontroller. It should be connected to the negative terminal of the power supply.
- RESET: This pin is used to reset the microcontroller. When a low pulse is applied to this pin, the microcontroller resets and starts execution from the beginning.
- PORTx: There are four ports (PORTA, PORTB, PORTC, and PORTD) in Atmega32a pu, with each port having eight pins. These pins can be used for various digital input/output operations.
- ADC: Atmega32a pu has an inbuilt analog-to-digital converter (ADC) with 10-bit resolution. The ADC pins allow the microcontroller to measure and convert analog signals into digital values.
- XTAL1 and XTAL2: These pins are used to connect an external crystal oscillator or resonator for providing a clock source to the microcontroller.
Understanding the pin configuration and functionality of Atmega32a pu is crucial for correctly utilizing its features and integrating it into various electronic projects. By utilizing the pins effectively, one can harness the full potential of this microcontroller in various applications.
